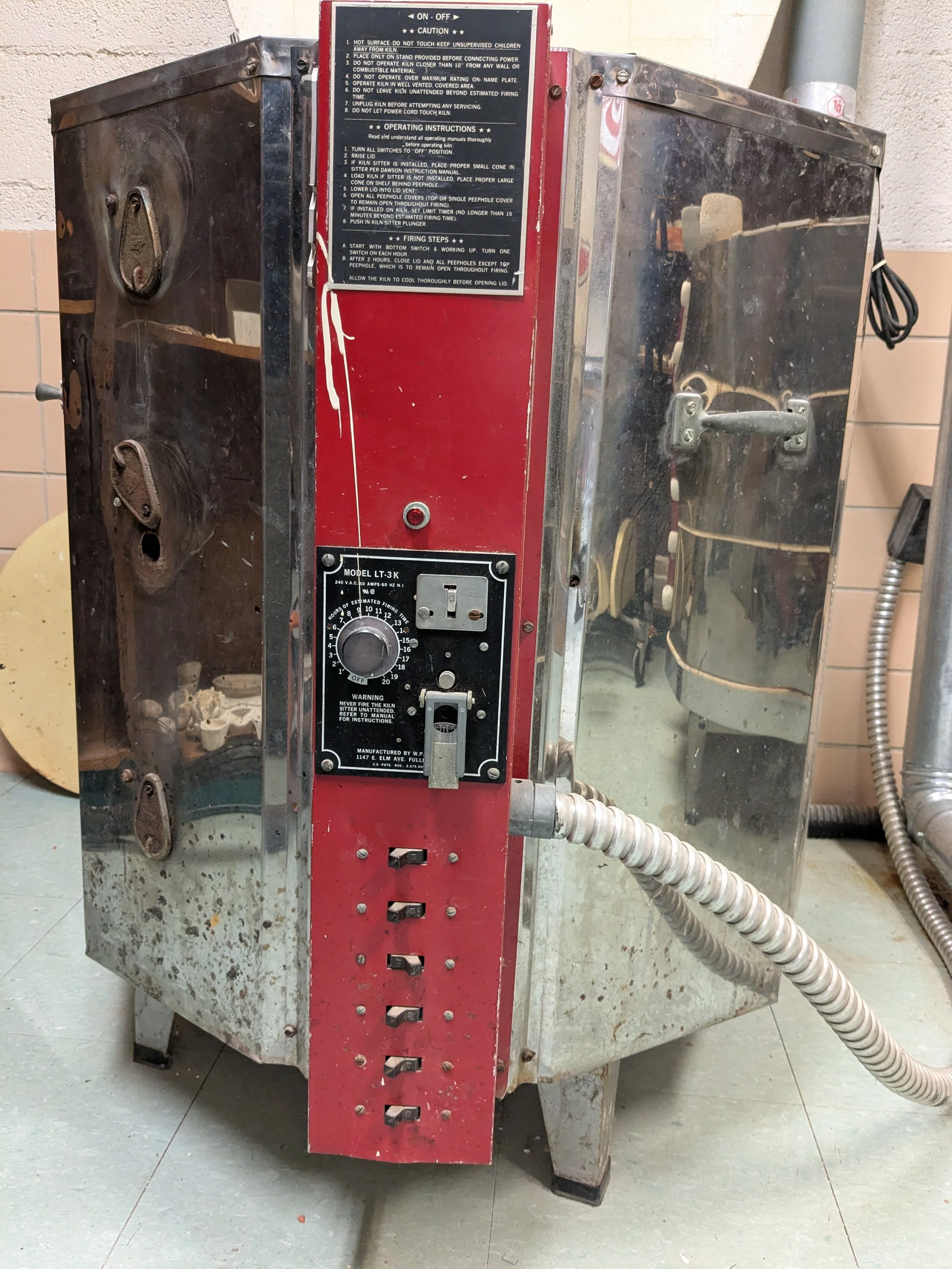

This old kiln was in great shape, but the owner wanted new controls to make it easier to use

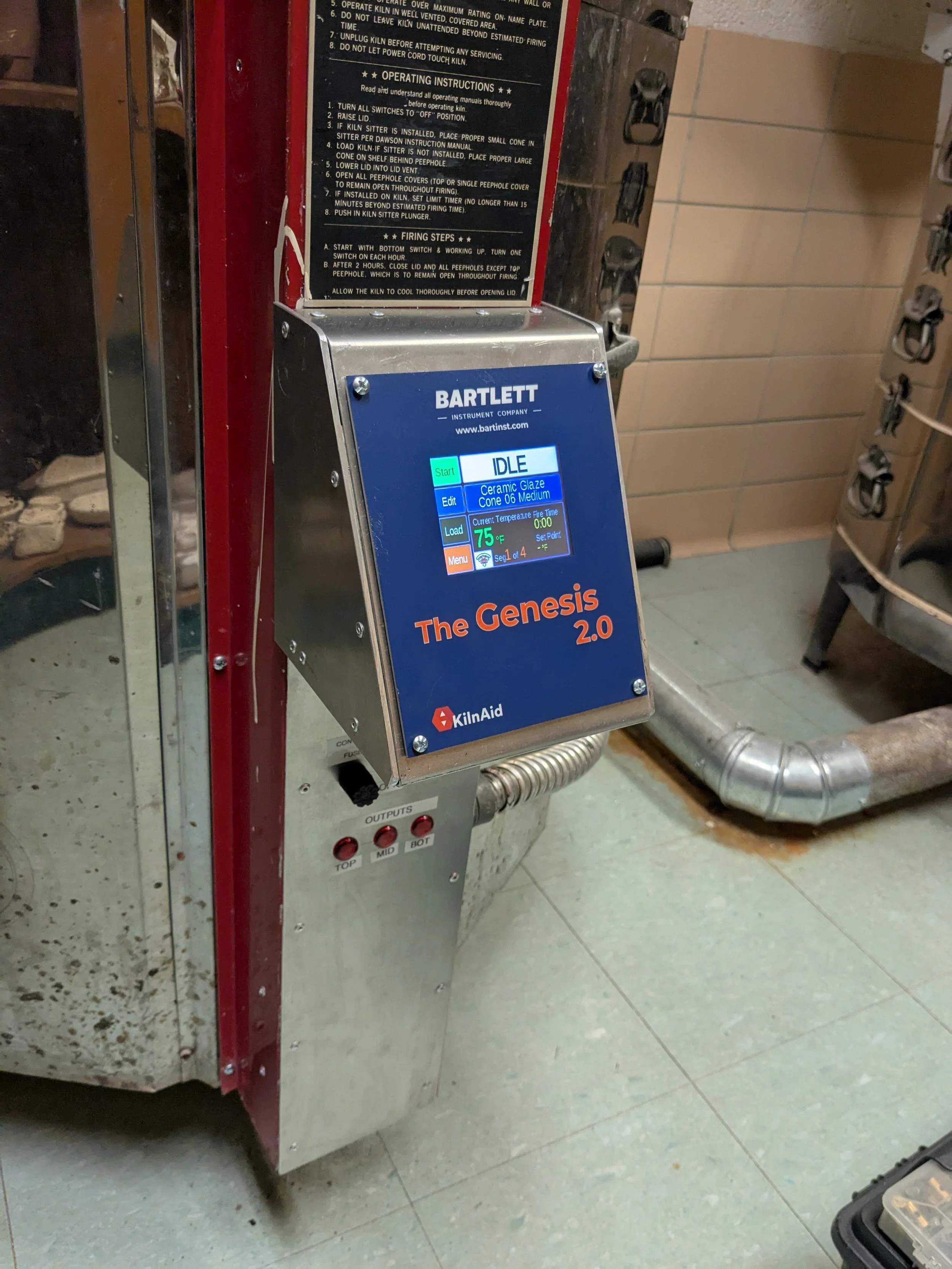

Same kiln with new controls. I added the angled console to the front of the existing panel to improve readability when standing. The panel would have been too low otherwise.
New panel showing the pilots provided to show which sections are operating. These pilots are after the relay, allowing monitoring of relay operation.

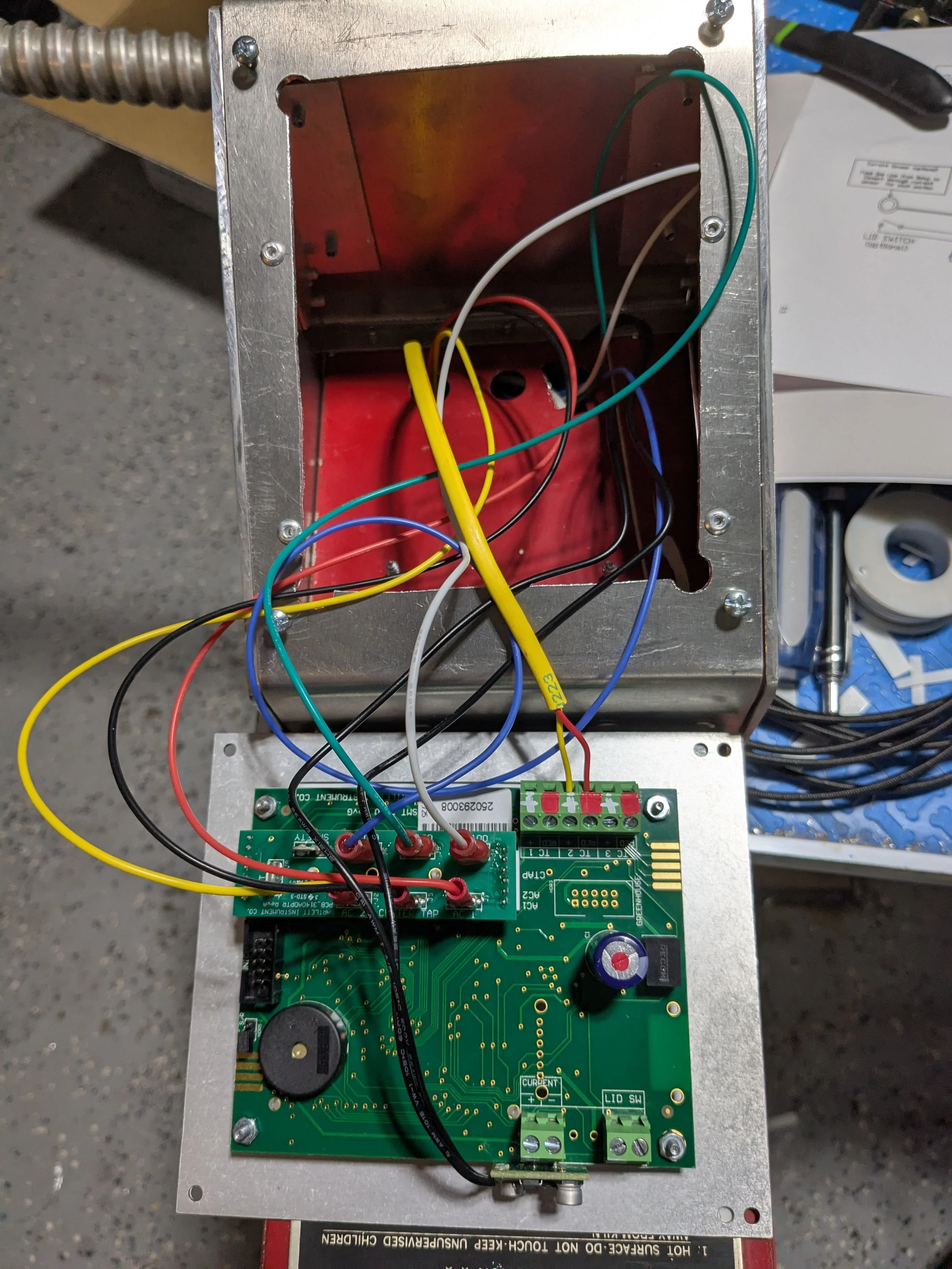

Internal of the new console.

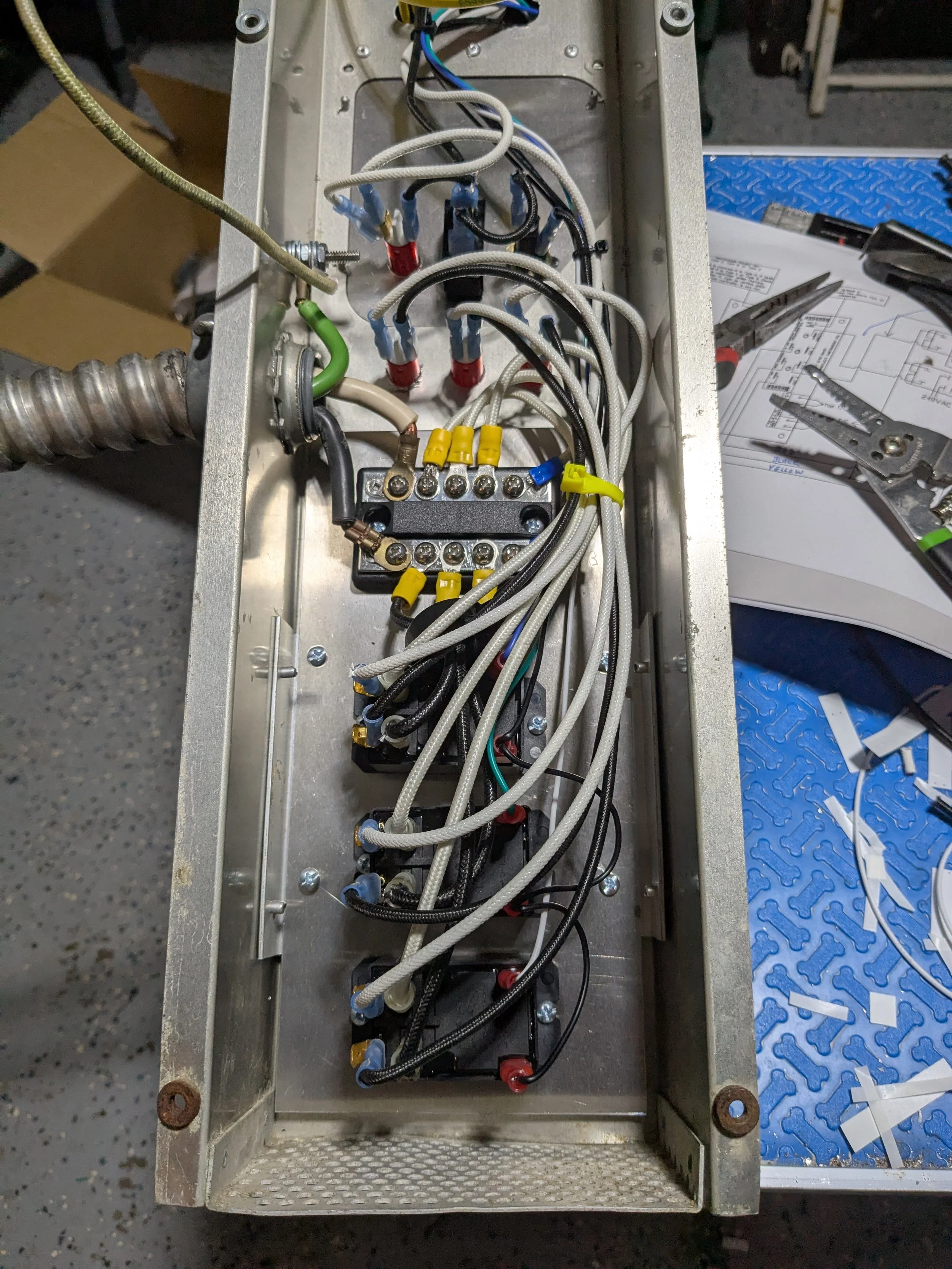

New internals of control panel showing relays and power wiring.
